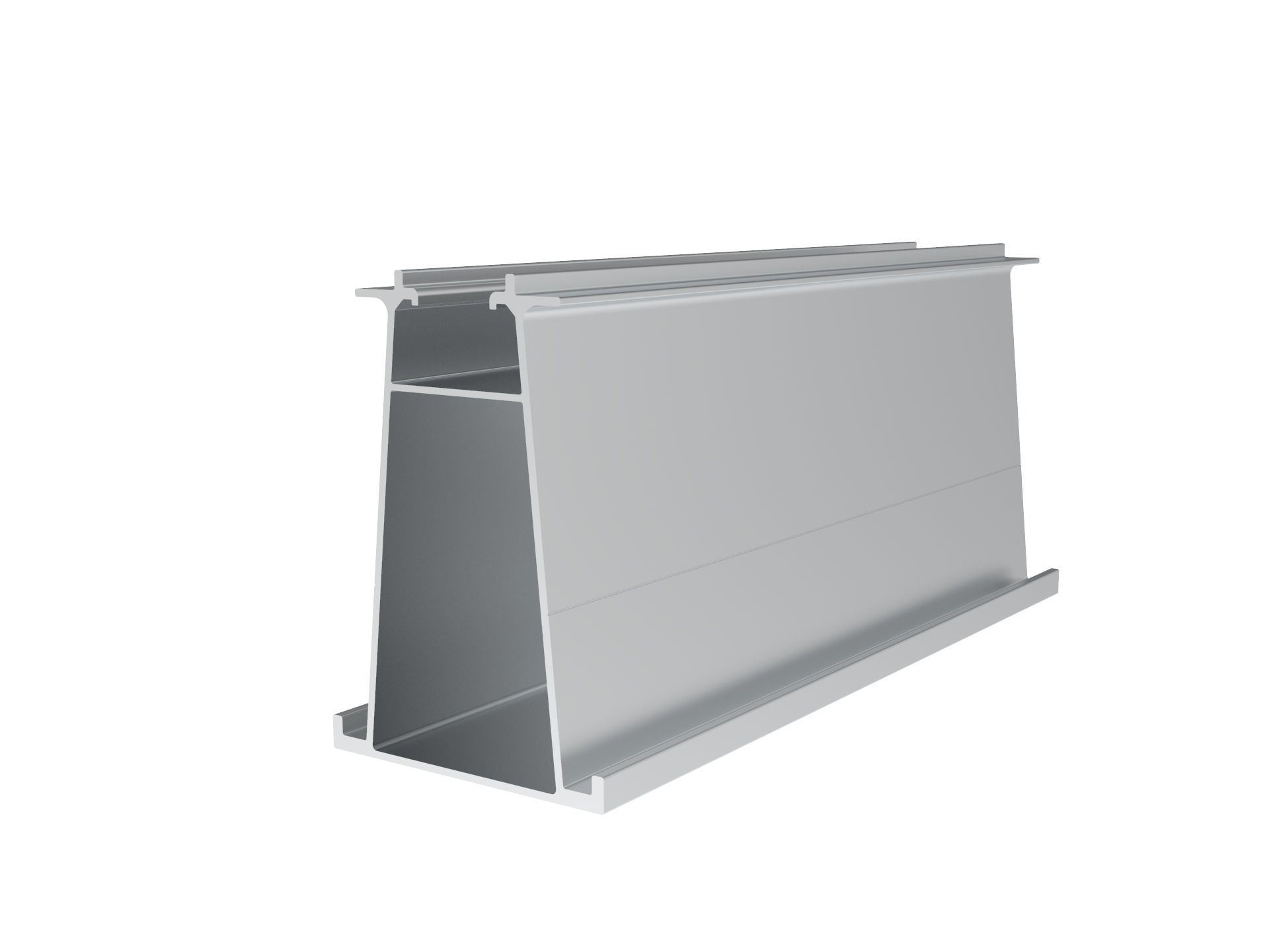

Aluminum Trapezoidal Guide Rail

The Maywon-SunDepot Rail 90 Aluminium Ground Bracket System is a premium-grade photovoltaic mounting solution engineered for Ground Mounting applications, combining durability, flexibility, and efficiency. Crafted from high-strength aluminum alloy, this trapezoidal guide rail profile ensures stable horizontal component installation for solar panels, making it ideal for large-scale solar farms, agricultural PV projects, and industrial installations.

Rail 90 is offering a versatile framework for secure ground-mounted installations. Its innovative design integrates seamlessly with Screw Pile Aluminium Ground Mounting solutions, enabling quick and efficient anchoring in diverse soil types. This combination eliminates the need for concrete foundations, reducing installation complexity and environmental impact.

The material of this guide rail is AL6005-T5 aluminum alloy, which is very lightweight and has high strength.The exterior of Maywon SunDepot Rail 90 is treated with AA15 anodizing, and this rail is designed for horizontal placement of solar panels, which can be used not only for ground cases but also for Metal Sheet Roofs

It has six lengths, namely:

90 Rail 2100mm  2.921kg

90 Rail 2400mm  3.338kg

90 Rail 3450mm  4.798kg

90 Rail 4200mm  5.842kg

90 Rail 4400mm  6.120kg

90 Rail 4750mm  6.607kg
