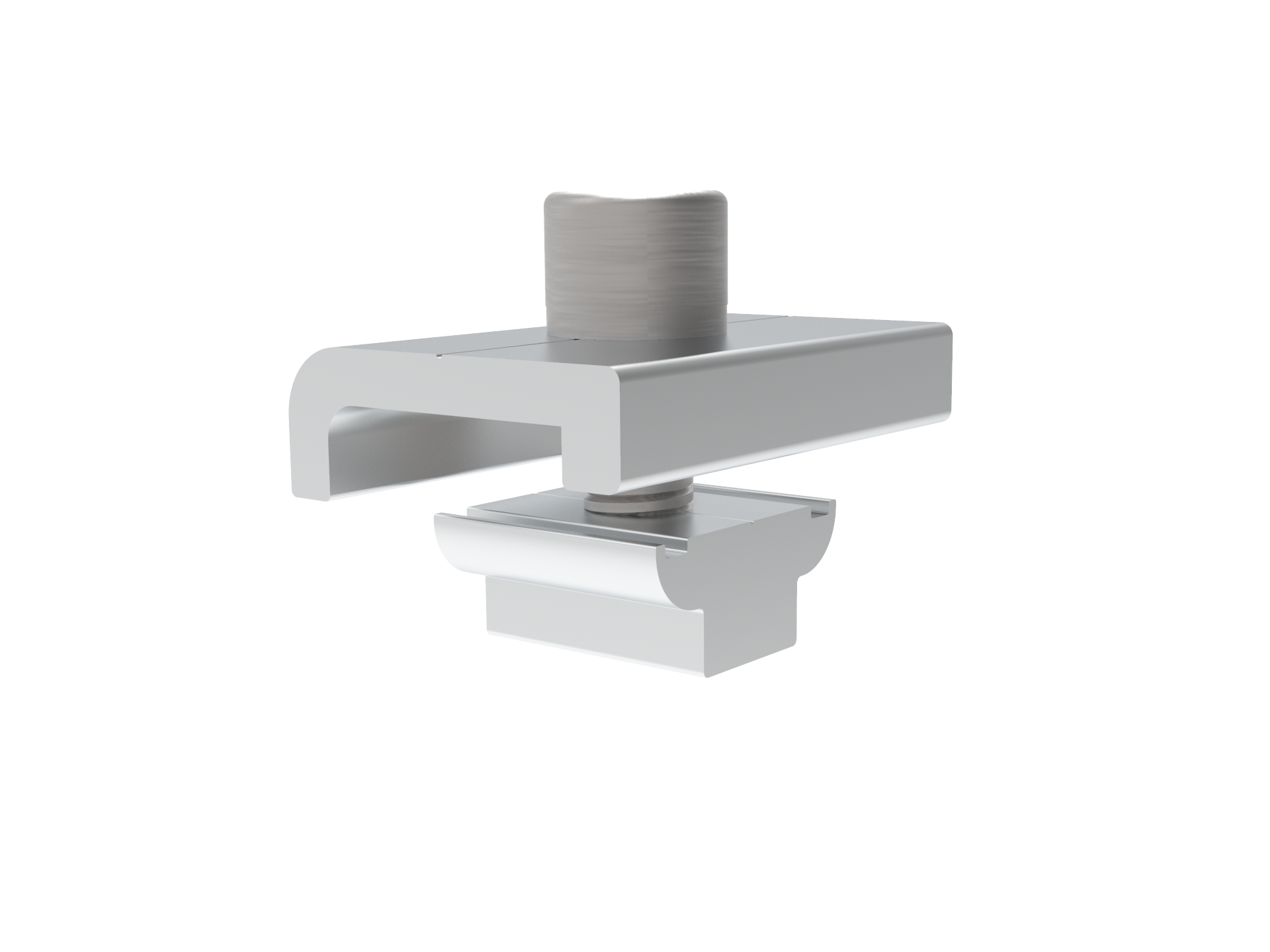

Solar C-shaped Bracket Clamp

Basic Info

Model No.: MW-CC-S40

Additional Info

Transportation: Air,Ocean

Port: SHANG HAI,NING BO,TAI CHANG

Product Description

Maywon developed the C-Shaped Bracket Clamp for Ground Mounting especially for the ZAM Steel Floor Ground Mounting Kits in 2012 with the High Durability Ballast Support Mounting structure. The C-clamp is originally unique designed for all aluminum mounting structure’s rails’ mount on the beam. The C-clamp can fasten the rails with the beam tightly with the bolt sets and nuts with a resistance on the wind load by 60m/s and snow load by 1000mm.The Solar C-shaped Bracket Clamp can also be used to secure our latest High Durability Ballet Support Mounting. The Solar C-shaped Bracket Clamp can fix its front and rear feet on the ballast rail.

Materials & Surface Treatment:

Aluminum Alloyed AL 6005-T5 AA15, SUS304

Specification & Assembly:

Pre-assembly Kits 40mm，Bolt set M8*25mm

Installation: All kinds of rails

Minimum Order: one carton

Production Capaticy: 500,000 sets/month

Quanty in Stock: 100,000 sets

Warranty: 12 year’s products quality and 25 years performance

Delivery: 15 days

Price term: EXW/FOB/CIF/DDU/DDP

Payment term: To order.
