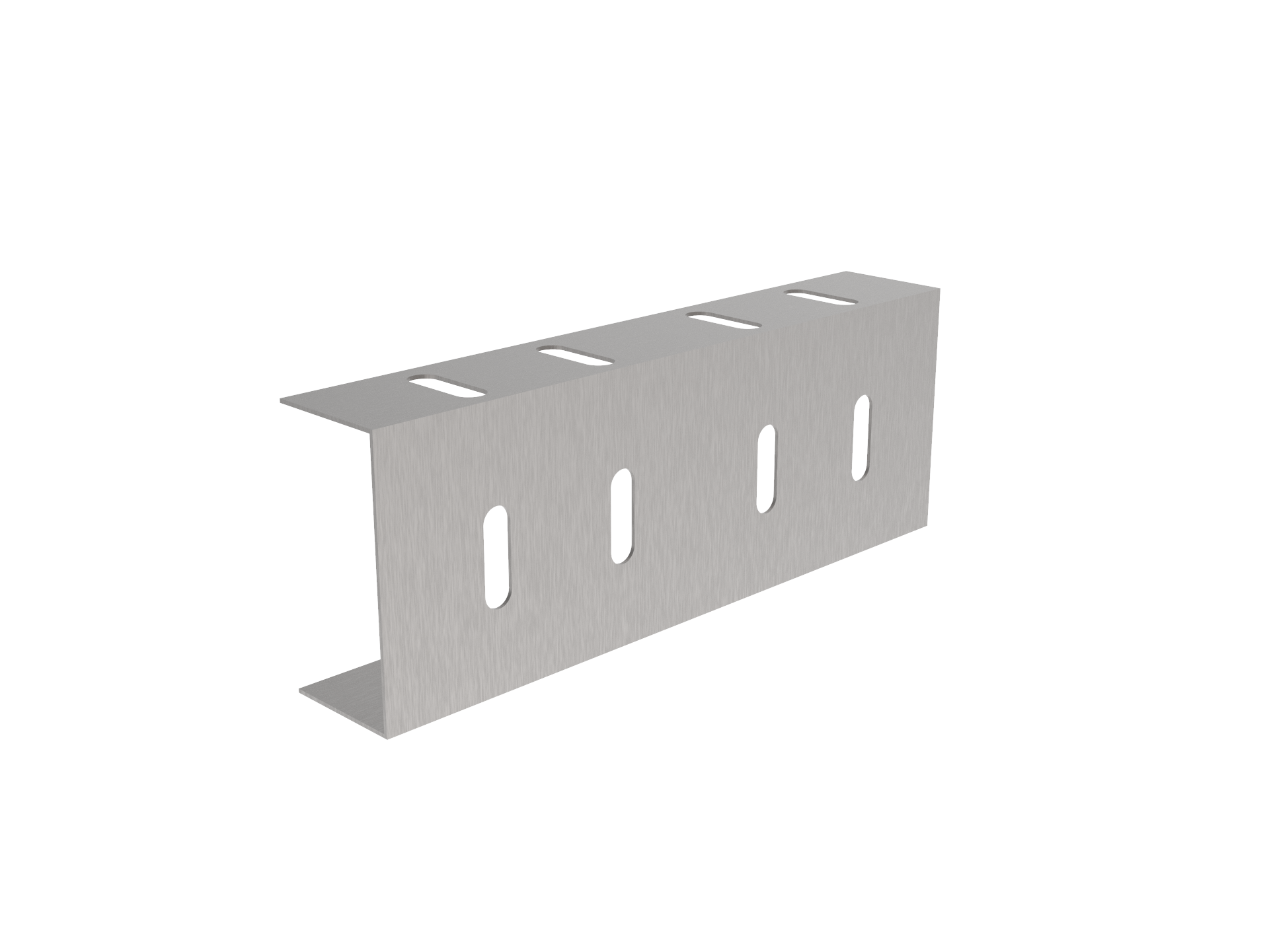

C-Shaped Steel Splice For Rail

Basic Info

Model No.: MW-SP-CS

Additional Info

Transportation: Air,Ocean

Port: SHANG HAI,NING BO,TAI CANG

Product Description

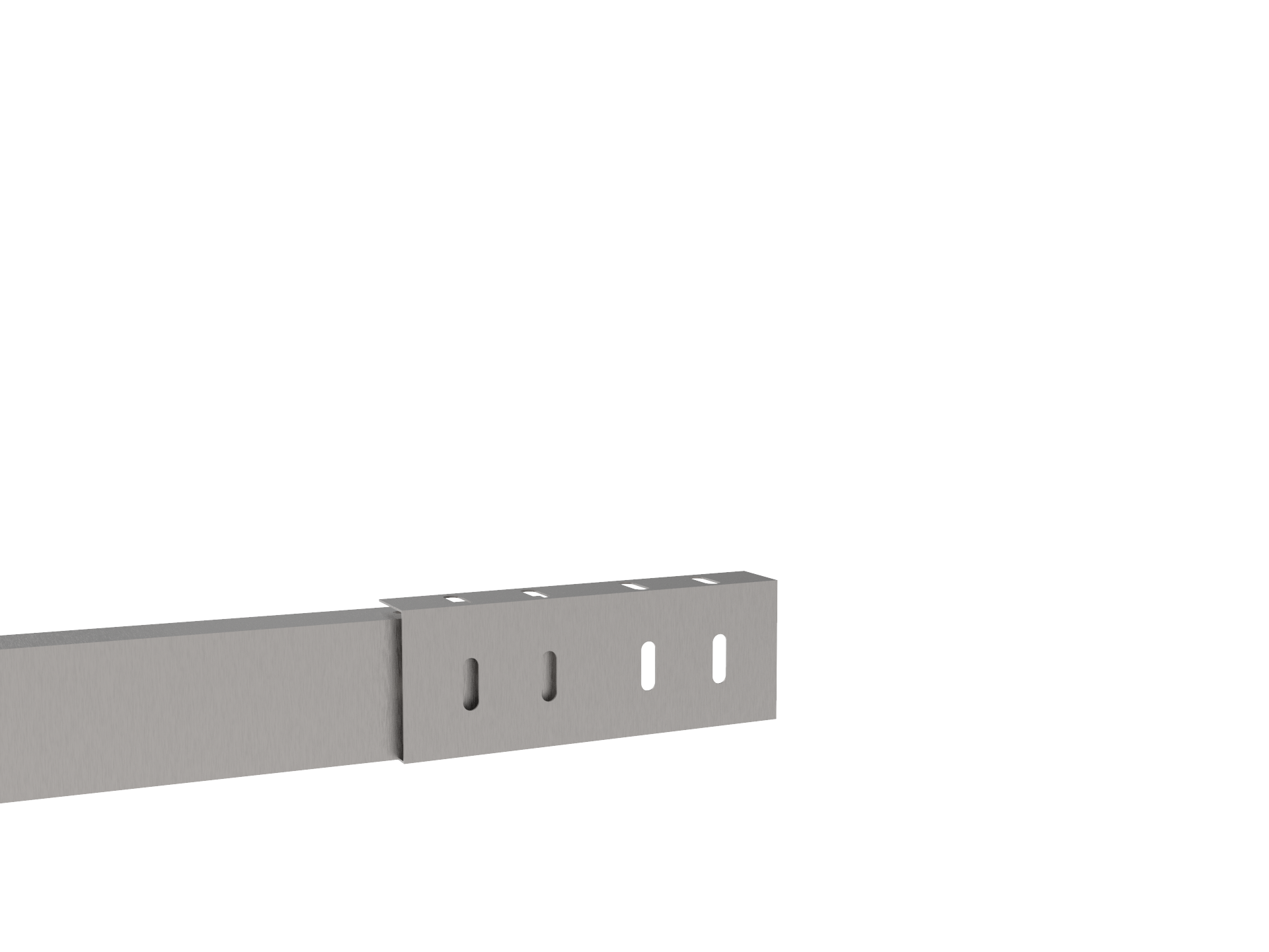

Maywon solar’s C-Shaped Steel Splice for Rails is specific on ZAM steel rails used for solar Groud Mounting, V-Flat Roof Mounting and Metal Sheet Roof Mounting structure. The splice is developed with ZAM steel structure since 2018, especially ZAM Steel is tested to be one kind of high tension and strength alloyed steel with the elements Zink, Magnesium and Aluminum inside of the alloyed steel. Maywon Solar developed new types of solar Ground Mounting by ZAM steel structure and other accessories for the installation. The C-shaped splice have more fabricating holes for screws’ better fastened either in the upper position or in the side wall.This multi hole method can better fix C-shaped steel and can also be used in ZAM Steel Floor Ground Mounting Kits, U-Shaped Steel Ground Bracket System，Pile In Concrete Steel Ground Bracet System， Because the ground case involves large spans of C-shaped steel and C-shaped steel connectors.

Materials & Surface Treatment: ZAM Steel & SUS304

Specification & Assembly: Length: 300mm with Bolt sets M30*mm

Installation: ZAM Steel rails

Package: Iron Pallet

Minimum Order: 100 pcs

Quanty in Stock: 1,000 pcs

Warranty: 12 year’s products quality and 25 years performance

Delivery: 15 days
