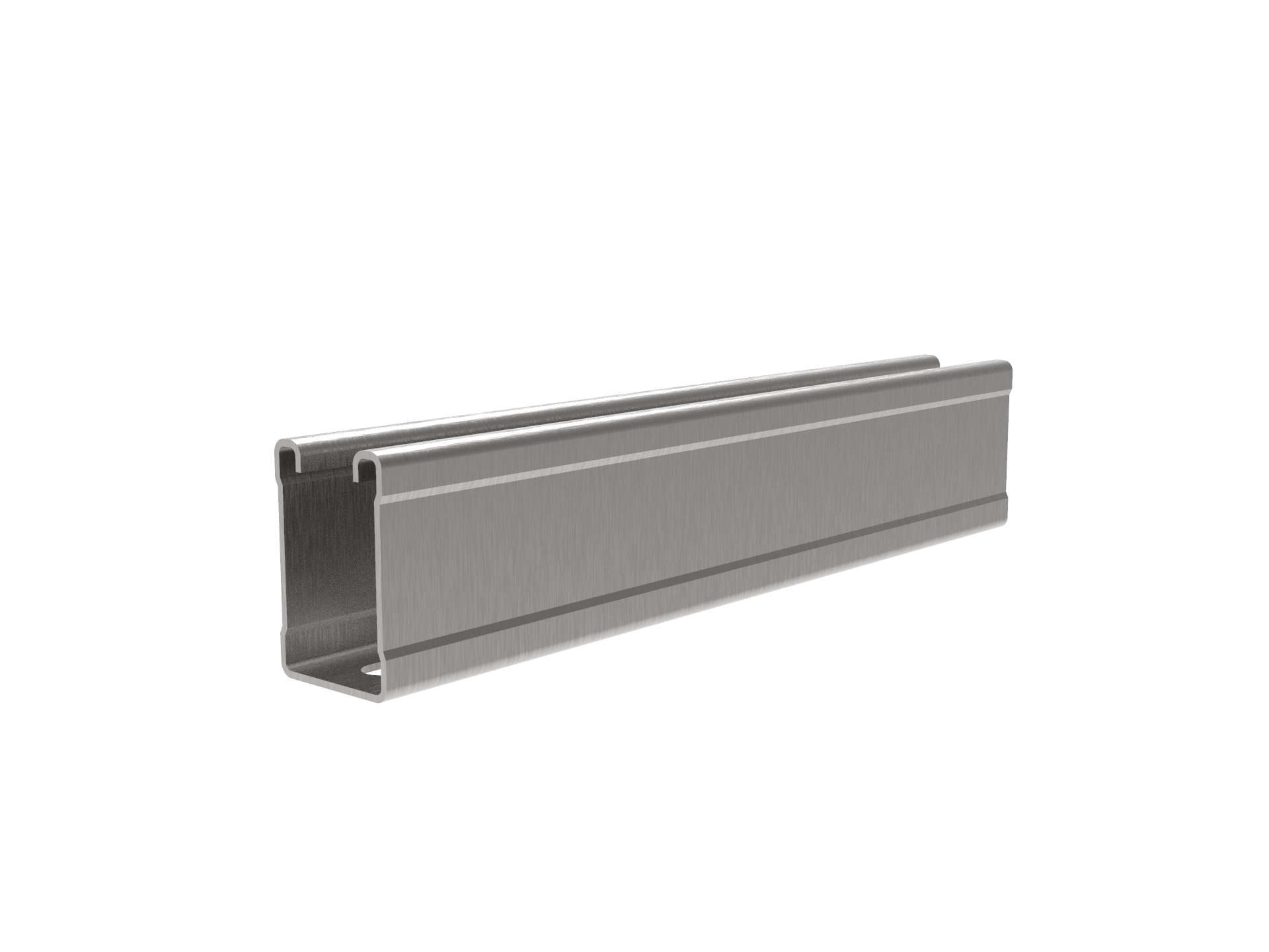

U-Shaped Hot-Dip Galvanized Guide Rail

Basic Info

Model No.: MW-R-US

Additional Info

Transportation: Ocean,Air

Port: SHANG HAI,NING BO,TAI CANG

Product Description

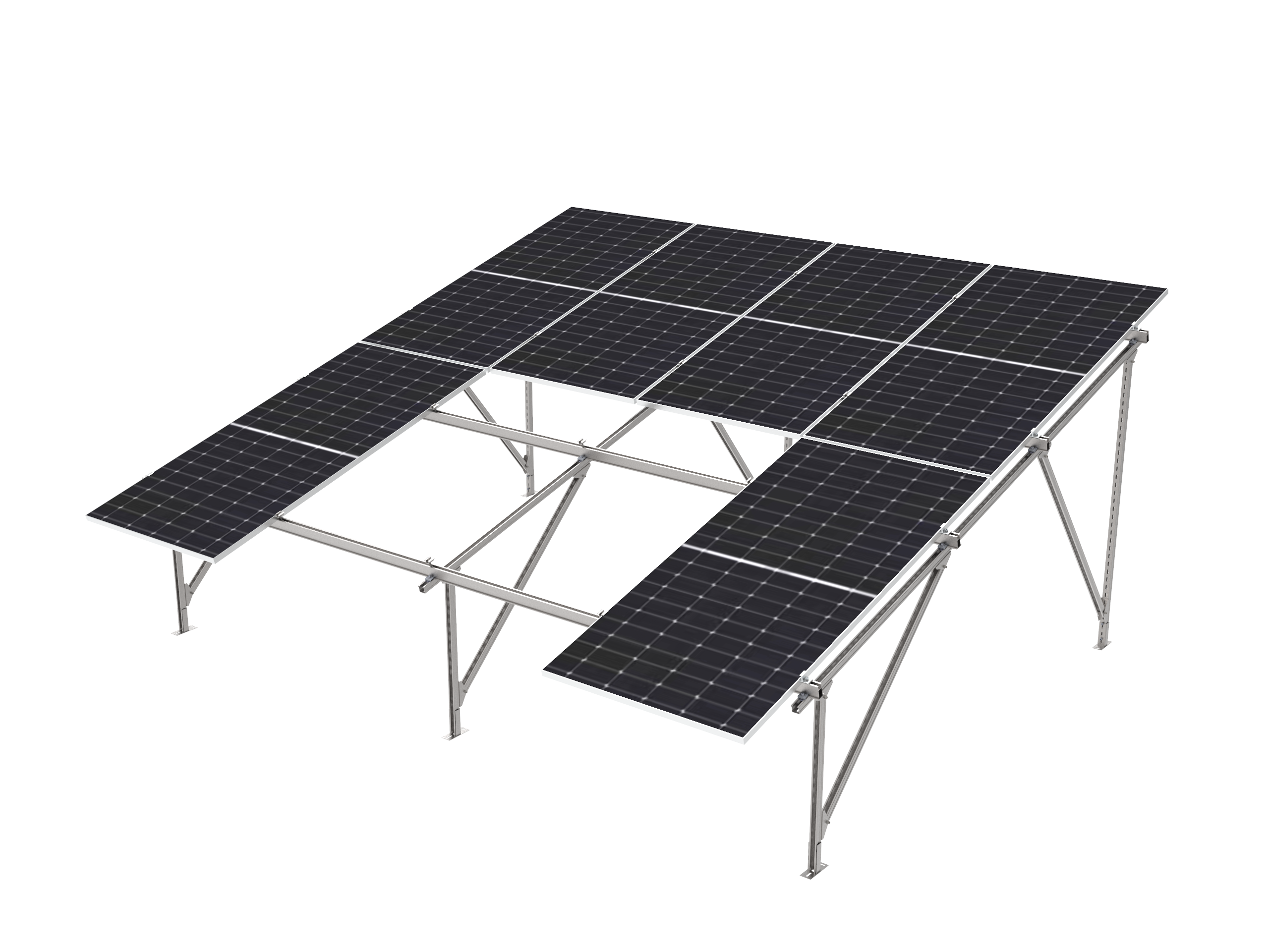

Maywon solar’s U-Shaped Hot-dip galvanized guide rail is made of HDZ Steel Q235B as the key parts for supporting solar panels in Flat Roof Mounting, Metal Sheet Roof Mounting and Ground Mounting structures. The U-Shaped Steel Splice has a good tension and strength to support solar panels with a big span over 4,000mm between two beams. Maywon solar has achieved over 2,000MW of hot dip galvanized rails since 2016 with the total mounting solutions. Maywon can provide customized design for the spec of the U-shaped rails.It can also be applied to ZAM Steel Floor Ground Mounting Kits, U-Shaped Steel Ground Bracket System，Pile In Concrete Steel Ground Bracet System It can be used as a guide rail support or as a diagonal rod in ground cases with a large number of components or a large span between columns.

Materials & Surface Treatment: HDZ steel Q235B

Specification & Assembly:

Spec: 41*41mm, 41*52mm, 41*62mm

Installation: All kinds of pole and beam structures

Package: Iron Pallet

Minimum Order: 100 pcs

Production Capaticy: 100,000 pcs/month

Quanty in Stock: 5,000 pcs

Warranty: 12 year’s products quality and 25 years performance

Delivery: 15 days

Price term: EXW/FOB/CIF/DDU/DDP

Payment term: To order.
