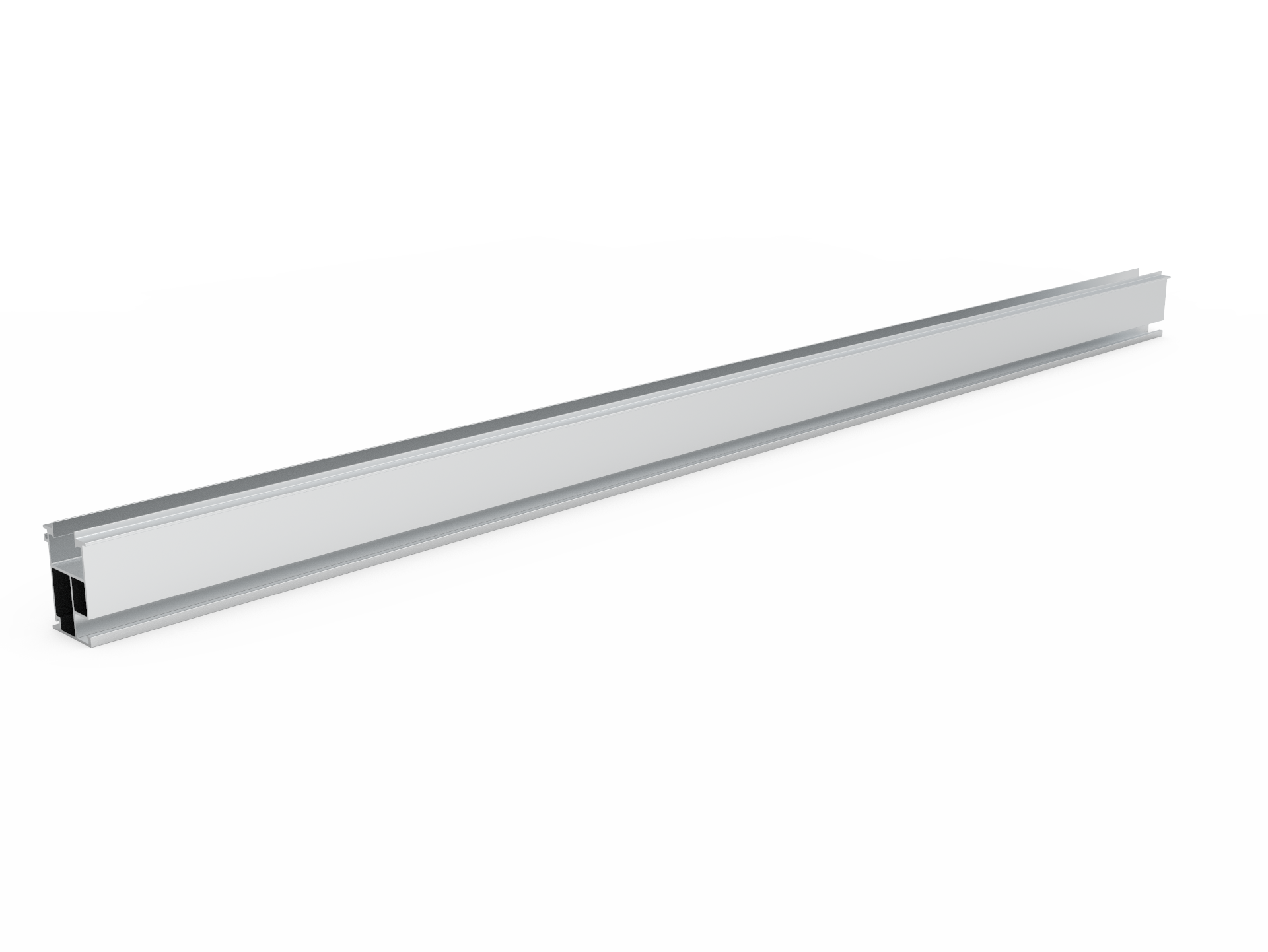

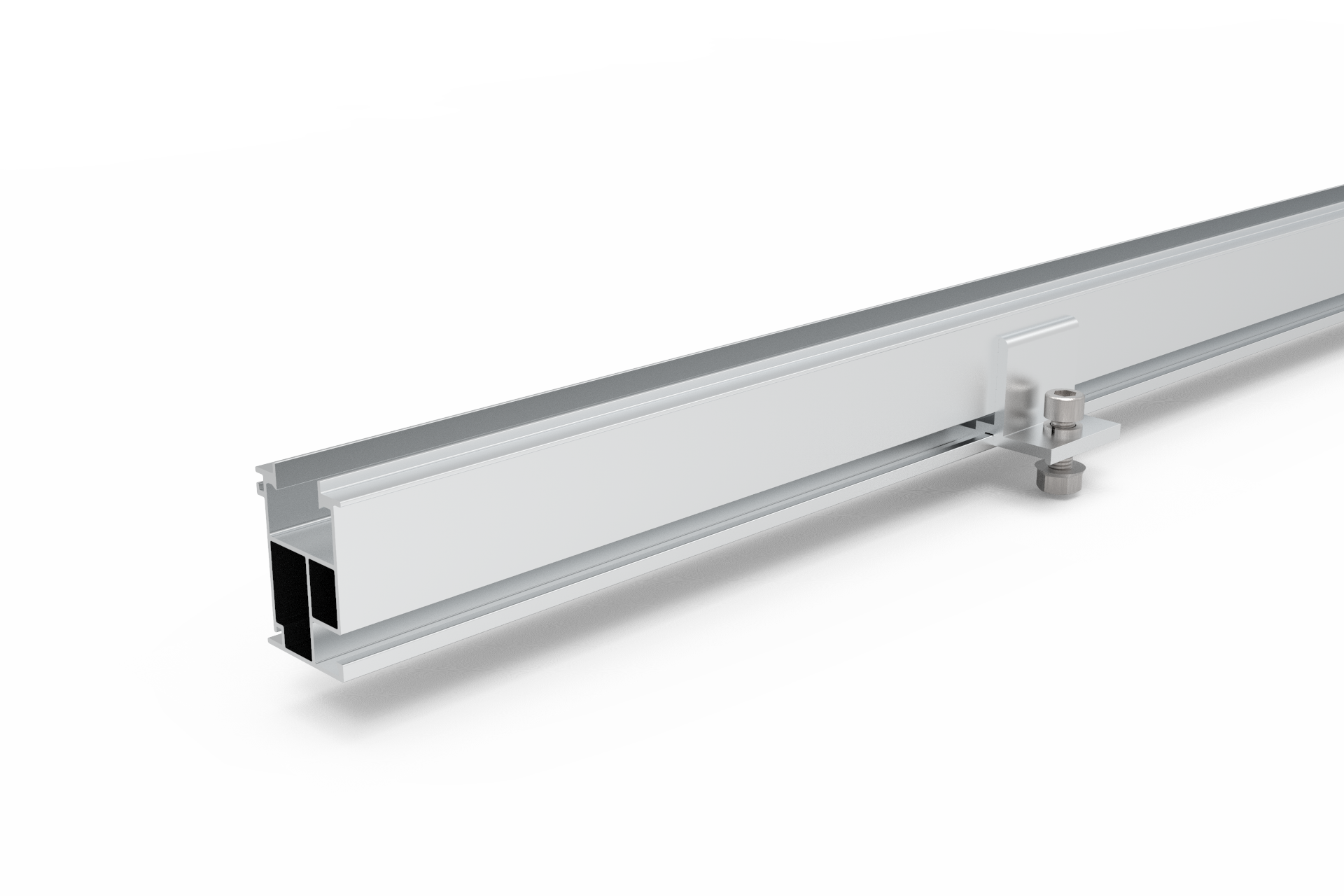

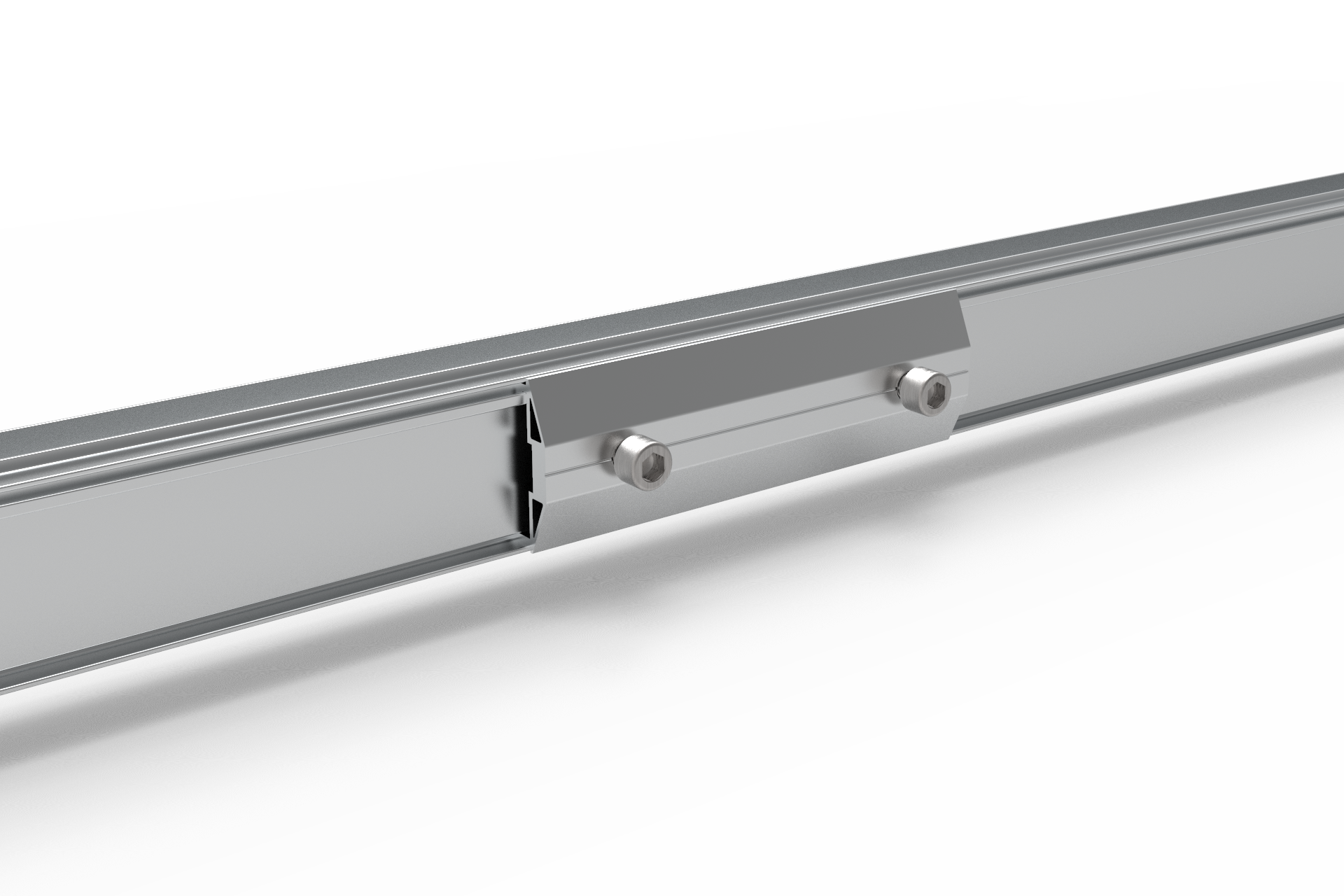

New Type of Solar Horizontal Guide Rail

This is the latest horizontal guide rail developed by our company, which is different from the majority of horizontal guide rails on the market. This new type of guide rail is lightweight but does not affect its strength. It is suitable for Metal Sheet Roof Mounting, Flat Roof Mounting, and Ground Mounting, and can be used as long as the components are placed horizontally. This guide rail is made of AL6005-T5 aluminum alloy material, which has two major advantages. The first advantage is high strength, using heated extruded aluminum alloy raw materials to form our guide rail. The second advantage is strong corrosion resistance. And the exterior adopts anodized AA15, which can also increase the corrosion resistance of the guide rail. This guide rail can be matched with our Aluminum Ground Bracket System, Screw Pile Aluminum Ground Mounting and other ground series brackets to meet customer needs.

At the same time, we will have various lengths:

50 Rail 2100mm 2100 1.73 kg

50 Rail 2400mm 2400 1.98 kg

50 Rail 3450mm 3450 2.84 kg

50 Rail 4200mm 4200 3.46 kg

50 Rail 4400mm 4400 3.63 kg

50 Rail 4750mm 4750 3.91 kg
