Adjustable Angle Ground Bracket

Basic Info

Model No.: MW-AG9-S

Additional Info

Transportation: Ocean,Air

Port: SHANG HAI,NING BO,TAI CANG

Product Description

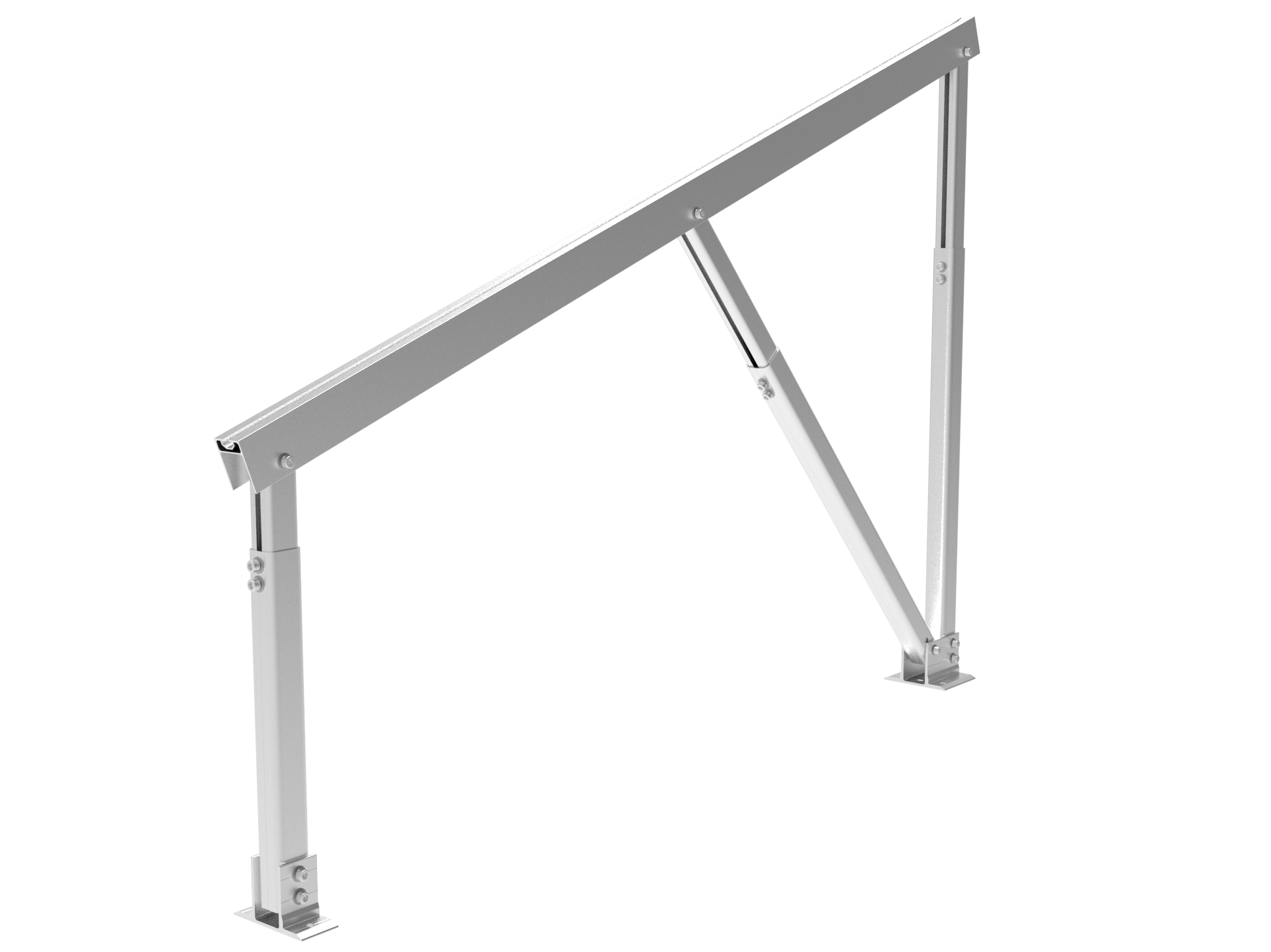

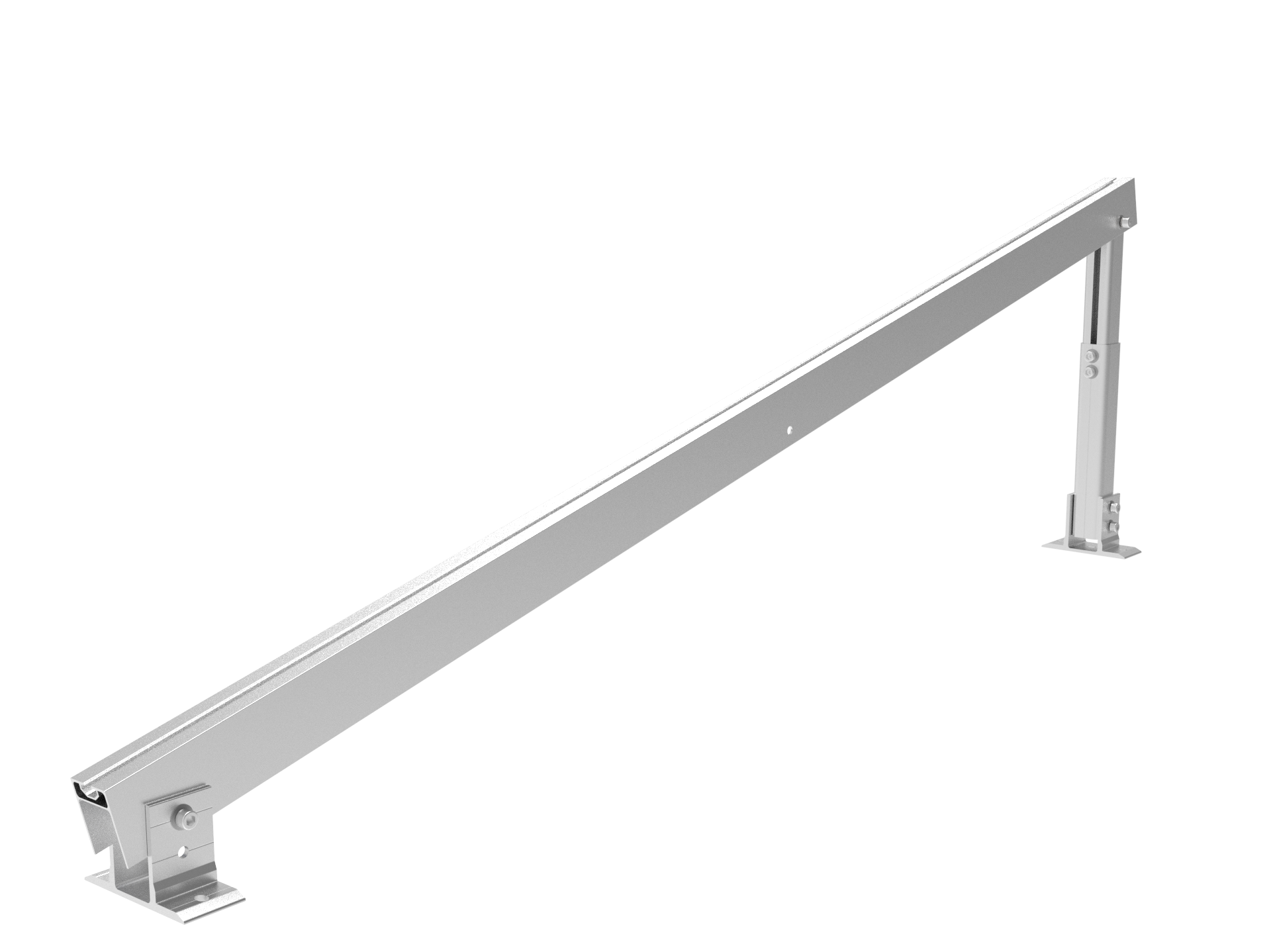

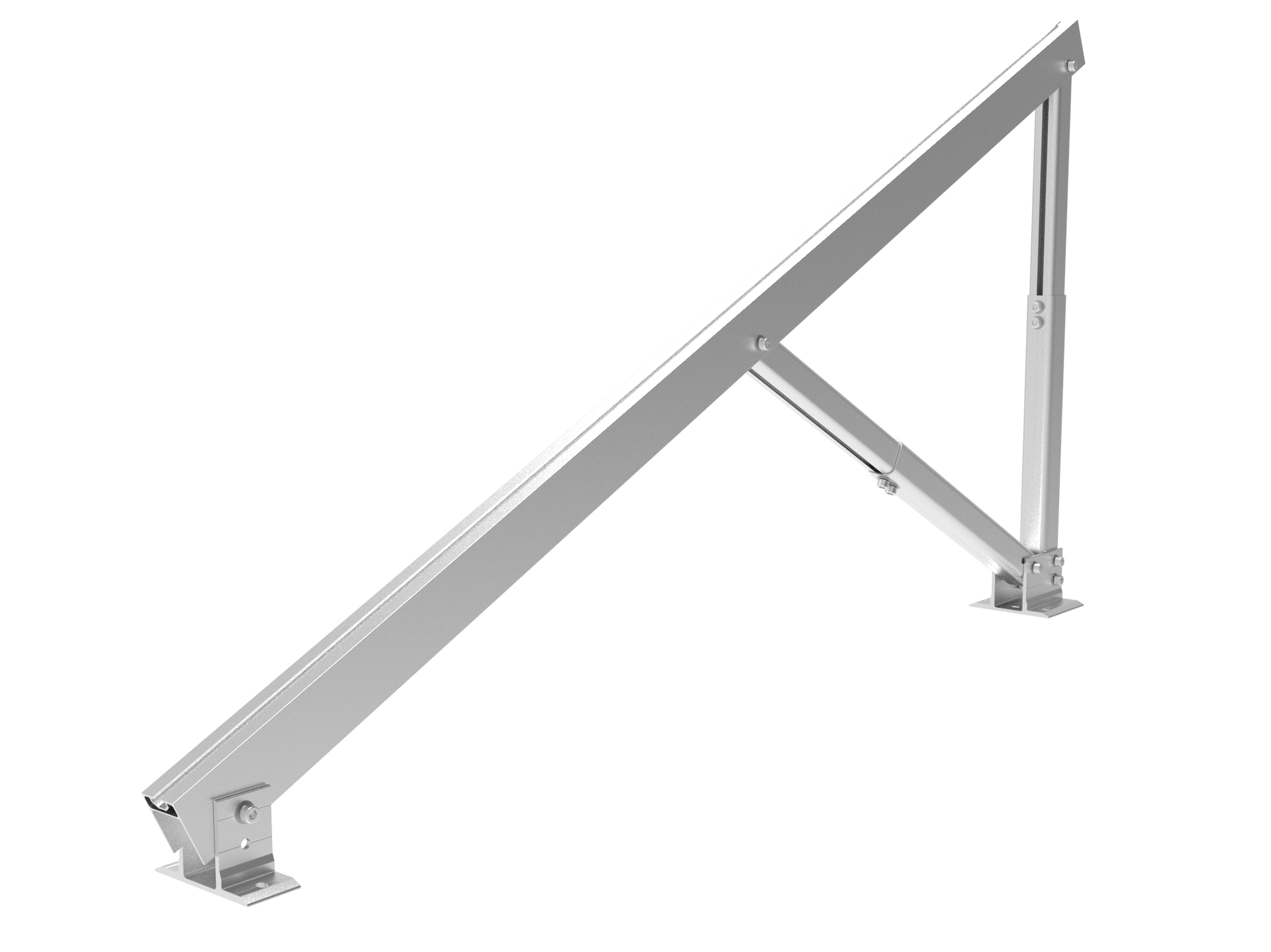

Maywon solar optimized the Adjustable Angle Group Bracket designed for Flat Roof Mounting, AL6005-5 Front And Rear Leg Rack MAX, Aluminum Ground Bracket System in 2024, and the updated Front and Rear leg structure can use on all kinds of rooftops and grounds. The leg adjustable for its height so that achieve the tilts’ adjustment. The structure extremely strong with the standards of 60m/s wind load and 1000mm snow load tested by SGS lab.It is composed of AL6005-T5 Front And Rear Leg Rack PLUS and large beams, which can achieve vertical and horizontal placement of solar panels, and can also be combined with 3rd Generation Of Micro Inverter and Module Rapid Shut Sown to create a simple home Solar Powered System.

Features: The specially designed M-shaped connector achieved a double tilt-adjustment for the whole structure flexible installed.

Adjustable height of Front&Rear legs：Pre-assembly before delivery and costs-saving.

Light-weight and flexible structure fit for any kind of rooftops.

Materials & Surface Treatment: Aluminum Alloyed AL 6005-T5 AA15, SUS304

Specification & Assembly: Pre-assembly

Installation: Connect with All kinds of surroundings

Payment term: To order.
